vMX image : vmxvfp-19.1R1.6-domestic-VFP , vmxvcp-19.1R1.6-domestic-VCP

EVE-NG : version 2.0.3-110

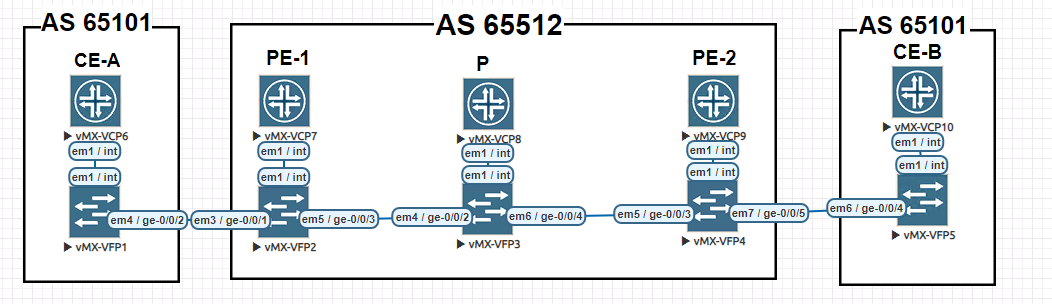

PE1- P - PE2 : OSPF, LDP ,MPLS

PE1 - PE2  : MP-BGP

CE - PE : EBGP

vMX trial licence가 필요함. 아래링크참조해서 라이센스 입력

www.juniper.net/kr/kr/dm/free-vmx-trial/



vMX 평가판 다운로드 - 주니퍼 네트웍스



www.juniper.net



CE-A config

root@CE-A# show | display set
set version 20190319.203446_builder.r1013243
set system root-authentication encrypted-password "$6$uVQJh3a3$gyooY5wDjzk/K9aCGuRpzyMgE/Cl1rJMi"
set system host-name CE-A
set system syslog file messages any notice
set system syslog file messages authorization info
set system syslog file interactive-commands interactive-commands any
set chassis network-services enhanced-ip
set interfaces ge-0/0/2 unit 0 family inet address 10.0.10.2/24
set interfaces fxp0 unit 0 family inet dhcp vendor-id Juniper-vmx-VM606ED64D1F
set interfaces lo0 unit 0 family inet address 192.168.11.1/32

# static 을 bgp로 redistribution 하기 위한 정책 적용
set policy-options policy-statement static-to-bgp term 10 from protocol static
set policy-options policy-statement static-to-bgp term 10 then accept
set policy-options policy-statement static-to-bgp term 20 then reject

set routing-options static route 11.11.11.0/24 discard

set routing-options router-id 192.168.11.1
set routing-options autonomous-system 65101

#PE와 BGP 설정
set protocols bgp group my-ext-group type external
set protocols bgp group my-ext-group peer-as 65512
set protocols bgp group my-ext-group neighbor 10.0.10.1

# static redistribution 정책 적용
set protocols bgp export static-to-bgp

CE-B config

root@CE-B# show | display set
set version 20190319.203446_builder.r1013243
set system root-authentication encrypted-password "$6$DKPBY8rA$PgT5FW/8LqOtFDOgXEefFkFwVNKzASvxE"
set system host-name CE-B
set system syslog file messages any notice
set system syslog file messages authorization info
set system syslog file interactive-commands interactive-commands any
set chassis network-services enhanced-ip
set interfaces ge-0/0/4 unit 0 family inet address 10.0.11.2/24
set interfaces fxp0 unit 0 family inet dhcp vendor-id Juniper-vmx-VM606ED6634D

# static 을 bgp로 redistribution 하기 위한 정책 적용
set policy-options policy-statement static-to-bgp term 10 from protocol static
set policy-options policy-statement static-to-bgp term 10 then accept
set policy-options policy-statement static-to-bgp term 20 then reject

set routing-options static route 22.22.22.0/24 discard
set routing-options autonomous-system 65101

# PE와 bgp 설정
set protocols bgp group my-ext-group type external
set protocols bgp group my-ext-group peer-as 65512
set protocols bgp group my-ext-group neighbor 10.0.11.1

# static redistribution 설정
set protocols bgp export static-to-bgp

PE-1 config

root@PE-1# show | display set
set version 20190319.203446_builder.r1013243
set system root-authentication encrypted-password "$6$FeXrUQwk$3BJw3SM4ZI4WyDnaJmXHt.BigV25NqOkA"
set system host-name PE-1
set system syslog file messages any notice
set system syslog file messages authorization info
set system syslog file interactive-commands interactive-commands any
set chassis network-services enhanced-ip
set interfaces ge-0/0/1 unit 0 family inet address 10.0.10.1/24
set interfaces ge-0/0/3 unit 0 family inet address 172.22.210.1/24
set interfaces ge-0/0/3 unit 0 family mpls
set interfaces fxp0 unit 0 family inet dhcp vendor-id Juniper-vmx-VM606ED678E3
set interfaces lo0 unit 0 family inet address 192.168.1.1/32

# import/export 적책 설정
set policy-options policy-statement export-vpn-a term 1 from protocol bgp
set policy-options policy-statement export-vpn-a term 1 then community add vpn-a
set policy-options policy-statement export-vpn-a term 1 then accept
set policy-options policy-statement export-vpn-a term 2 then reject
set policy-options policy-statement import-vpn-a term 1 from protocol bgp
set policy-options policy-statement import-vpn-a term 1 from community vpn-a
set policy-options policy-statement import-vpn-a term 1 then accept
set policy-options policy-statement import-vpn-a term 2 then reject

# RT 설정
set policy-options community vpn-a members target:65512:101

# CE용 VRF 설정
set routing-instances VPN-A instance-type vrf
set routing-instances VPN-A interface ge-0/0/1.0
set routing-instances VPN-A route-distinguisher 192.168.1.1:1
set routing-instances VPN-A vrf-import import-vpn-a ## import 정책적용
set routing-instances VPN-A vrf-export export-vpn-a ## export 정책적용
set routing-instances VPN-A vrf-target target:65512:101

# CE와 EBGP 설정, as-override
set routing-instances VPN-A protocols bgp group my-ext-group type external
set routing-instances VPN-A protocols bgp group my-ext-group peer-as 65101
set routing-instances VPN-A protocols bgp group my-ext-group as-override
set routing-instances VPN-A protocols bgp group my-ext-group neighbor 10.0.10.2

set routing-options router-id 192.168.1.1
set routing-options autonomous-system 65512
set protocols ldp interface ge-0/0/3.0
set protocols ldp interface lo0.0

# PE와 BGP 설정
set protocols bgp group PE-PE type internal
set protocols bgp group PE-PE local-address 192.168.1.1
set protocols bgp group PE-PE family inet unicast
set protocols bgp group PE-PE family inet-vpn unicast
set protocols bgp group PE-PE local-as 65512
set protocols bgp group PE-PE neighbor 192.168.1.3

set protocols ospf area 0.0.0.0 interface lo0.0 passive
set protocols ospf area 0.0.0.0 interface ge-0/0/3.0 interface-type p2p
set protocols mpls interface lo0.0
set protocols mpls interface ge-0/0/3.0

PE-2 config

root@PE-2# show | display set
set version 20190319.203446_builder.r1013243
set system root-authentication encrypted-password "$6$pzuS08KF$SevcYY3KewZraLtshsbGEPRFPXjjbmfXd"
set system host-name PE-2
set system syslog file messages any notice
set system syslog file messages authorization info
set system syslog file interactive-commands interactive-commands any
set interfaces ge-0/0/3 unit 0 family inet address 172.22.212.1/24
set interfaces ge-0/0/3 unit 0 family mpls
set interfaces ge-0/0/5 unit 0 family inet address 10.0.11.1/24
set interfaces fxp0 unit 0 family inet dhcp vendor-id Juniper-vmx-VM606ED63CAE
set interfaces lo0 unit 0 family inet address 192.168.1.3/32

# import/export 적책 설정
set policy-options policy-statement export-vpn-a term 1 from protocol bgp
set policy-options policy-statement export-vpn-a term 1 then community add vpn-a
set policy-options policy-statement export-vpn-a term 1 then accept
set policy-options policy-statement export-vpn-a term 2 then reject
set policy-options policy-statement import-vpn-a term 1 from protocol bgp
set policy-options policy-statement import-vpn-a term 1 from community vpn-a
set policy-options policy-statement import-vpn-a term 1 then accept
set policy-options policy-statement import-vpn-a term 2 then reject

# RT 설정
set policy-options community vpn-a members target:65512:101

# CE용 VRF 설정
set routing-instances VPN-A instance-type vrf
set routing-instances VPN-A interface ge-0/0/5.0
set routing-instances VPN-A route-distinguisher 192.168.1.1:1
set routing-instances VPN-A vrf-import import-vpn-a   ## import 정책적용
set routing-instances VPN-A vrf-export export-vpn-a   ## export 정책적용
set routing-instances VPN-A vrf-target target:65512:101

# CE와 EBGP 설정, as-override
set routing-instances VPN-A protocols bgp group my-ext-group type external
set routing-instances VPN-A protocols bgp group my-ext-group peer-as 65101
set routing-instances VPN-A protocols bgp group my-ext-group as-override
set routing-instances VPN-A protocols bgp group my-ext-group neighbor 10.0.11.2

set routing-options router-id 192.168.1.3
set routing-options autonomous-system 65512
set protocols ldp interface ge-0/0/3.0
set protocols ldp interface lo0.0

# PE와 BGP 설정
set protocols bgp group PE-PE type internal
set protocols bgp group PE-PE local-address 192.168.1.3
set protocols bgp group PE-PE family inet unicast
set protocols bgp group PE-PE family inet-vpn unicast
set protocols bgp group PE-PE local-as 65512
set protocols bgp group PE-PE neighbor 192.168.1.1

set protocols ospf area 0.0.0.0 interface lo0.0 passive
set protocols ospf area 0.0.0.0 interface ge-0/0/3.0 interface-type p2p
set protocols mpls interface lo0.0
set protocols mpls interface ge-0/0/3.0

P config

root@P# show | display set
set version 20190319.203446_builder.r1013243
set system root-authentication encrypted-password "$6$AMdZ8SMO$4Qo31czcjEstpN25WVnn49m14QV6JbkDR"
set system host-name P
set system syslog file messages any notice
set system syslog file messages authorization info
set system syslog file interactive-commands interactive-commands any
set chassis network-services ip
set interfaces ge-0/0/2 unit 0 family inet address 172.22.210.2/24
set interfaces ge-0/0/2 unit 0 family mpls
set interfaces ge-0/0/4 unit 0 family inet address 172.22.212.2/24
set interfaces ge-0/0/4 unit 0 family mpls
set interfaces fxp0 unit 0 family inet dhcp vendor-id Juniper-vmx-VM606ED66EC5
set interfaces lo0 unit 0 family inet address 192.168.1.2/32
set routing-options router-id 192.168.1.2
set routing-options autonomous-system 65512

set protocols ldp interface ge-0/0/2.0
set protocols ldp interface ge-0/0/4.0
set protocols ldp interface lo0.0

set protocols ospf area 0.0.0.0 interface lo0.0 passive
set protocols ospf area 0.0.0.0 interface ge-0/0/2.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface ge-0/0/4.0 interface-type p2p

set protocols mpls interface lo0.0
set protocols mpls interface ge-0/0/2.0
set protocols mpls interface ge-0/0/4.0



728x90

vMX image :  vmxvfp-19.1R1.6-domestic-VFP , vmxvcp-19.1R1.6-domestic-VCP

EVE-NG :  version  2.0.3-110



R1 config

더보기

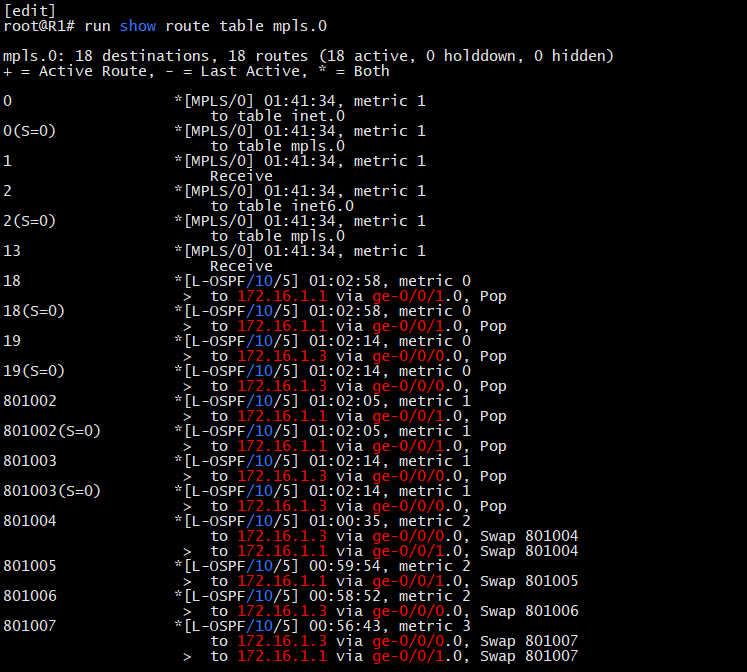

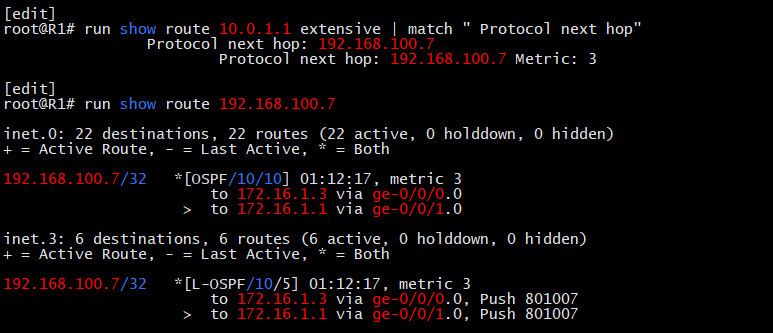

root@R1# show | display set
set version 20190319.203446_builder.r1013243
set system root-authentication encrypted-password
set system host-name R1
set system syslog file messages any notice
set system syslog file messages authorization info
set system syslog file interactive-commands interactive-commands any
set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 172.16.1.2/31
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 172.16.1.0/31
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces fxp0 unit 0 family inet dhcp vendor-id Juniper-vmx-VM60596C81C4
set interfaces lo0 unit 0 family inet address 192.168.100.1/32
set routing-options router-id 192.168.100.1
set protocols bgp group R1-R7 type internal
set protocols bgp group R1-R7 local-address 192.168.100.1
set protocols bgp group R1-R7 local-as 65001
set protocols bgp group R1-R7 neighbor 192.168.100.7
set protocols ospf source-packet-routing node-segment ipv4-index 1001
set protocols ospf source-packet-routing srgb start-label 800000
set protocols ospf source-packet-routing srgb index-range 4000
set protocols ospf area 0.0.0.0 interface fxp0.0 disable
set protocols ospf area 0.0.0.0 interface ge-0/0/0.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface ge-0/0/1.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface lo0.0 passive
set protocols mpls interface fxp0.0 disable
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0

R2 config

더보기

root@R2# show | display set
set version 20190319.203446_builder.r1013243
set system root-authentication encrypted-password
set system host-name R2
set system syslog file messages any notice
set system syslog file messages authorization info
set system syslog file interactive-commands interactive-commands any
set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 172.16.1.1/31
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 172.16.1.6/31
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces ge-0/0/2 unit 0 family inet address 172.16.1.4/31
set interfaces ge-0/0/2 unit 0 family mpls
set interfaces fxp0 unit 0 family inet dhcp vendor-id Juniper-vmx-VM60596CD12F
set interfaces lo0 unit 0 family inet address 192.168.100.2/32
set routing-options router-id 192.168.100.2
set protocols ospf source-packet-routing node-segment ipv4-index 1002
set protocols ospf source-packet-routing srgb start-label 800000
set protocols ospf source-packet-routing srgb index-range 4000
set protocols ospf area 0.0.0.0 interface fxp0.0 disable
set protocols ospf area 0.0.0.0 interface ge-0/0/0.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface ge-0/0/1.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface ge-0/0/2.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface lo0.0 passive
set protocols mpls interface fxp0.0 disable
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface ge-0/0/2.0

R3 config

더보기

root@R3# show | display set
set version 20190319.203446_builder.r1013243
set system root-authentication encrypted-password
set system host-name R3
set system syslog file messages any notice
set system syslog file messages authorization info
set system syslog file interactive-commands interactive-commands any
set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 172.16.1.3/31
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 172.16.1.10/31
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces ge-0/0/2 unit 0 family inet address 172.16.1.8/31
set interfaces ge-0/0/2 unit 0 family mpls
set interfaces fxp0 unit 0 family inet dhcp vendor-id Juniper-vmx-VM60596CDE48
set interfaces lo0 unit 0 family inet address 192.168.100.3/32
set routing-options router-id 192.168.100.3
set protocols ospf source-packet-routing node-segment ipv4-index 1003
set protocols ospf source-packet-routing srgb start-label 800000
set protocols ospf source-packet-routing srgb index-range 4000
set protocols ospf area 0.0.0.0 interface fxp0.0 disable
set protocols ospf area 0.0.0.0 interface ge-0/0/0.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface ge-0/0/1.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface ge-0/0/2.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface lo0.0 passive
set protocols mpls interface fxp0.0 disable
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface ge-0/0/2.0

R4 config

더보기

root@R4# show | display set
set version 20190319.203446_builder.r1013243
set system root-authentication encrypted-password
set system host-name R4
set system syslog file messages any notice
set system syslog file messages authorization info
set system syslog file interactive-commands interactive-commands any
set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 172.16.1.9/31
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 172.16.1.7/31
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces ge-0/0/2 unit 0 family inet address 172.16.1.14/31
set interfaces ge-0/0/2 unit 0 family mpls
set interfaces ge-0/0/3 unit 0 family inet address 172.16.1.12/31
set interfaces ge-0/0/3 unit 0 family mpls
set interfaces fxp0 unit 0 family inet dhcp vendor-id Juniper-vmx-VM60596C8DDF
set interfaces lo0 unit 0 family inet address 192.168.100.4/32
set routing-options router-id 192.168.100.4
set protocols ospf source-packet-routing node-segment ipv4-index 1004
set protocols ospf source-packet-routing srgb start-label 800000
set protocols ospf source-packet-routing srgb index-range 4000
set protocols ospf area 0.0.0.0 interface fxp0.0 disable
set protocols ospf area 0.0.0.0 interface ge-0/0/0.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface ge-0/0/1.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface ge-0/0/2.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface ge-0/0/3.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface lo0.0 passive
set protocols mpls interface fxp0.0 disable
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface ge-0/0/2.0
set protocols mpls interface ge-0/0/3.0

R5 config

더보기

root@R5# show | display set
set version 20190319.203446_builder.r1013243
set system root-authentication encrypted-password
set system host-name R5
set system syslog file messages any notice
set system syslog file messages authorization info
set system syslog file interactive-commands interactive-commands any
set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 172.16.1.5/31
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 172.16.1.13/31
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces ge-0/0/2 unit 0 family inet address 172.16.1.16/31
set interfaces ge-0/0/2 unit 0 family mpls
set interfaces fxp0 unit 0 family inet dhcp vendor-id Juniper-vmx-VM60596CBE1B
set interfaces lo0 unit 0 family inet address 192.168.100.5/32
set routing-options router-id 192.168.100.5
set protocols ospf source-packet-routing node-segment ipv4-index 1005
set protocols ospf source-packet-routing srgb start-label 800000
set protocols ospf source-packet-routing srgb index-range 4000
set protocols ospf area 0.0.0.0 interface fxp0.0 disable
set protocols ospf area 0.0.0.0 interface ge-0/0/0.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface ge-0/0/1.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface ge-0/0/2.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface lo0.0 passive
set protocols mpls interface fxp0.0 disable
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface ge-0/0/2.0

R6 config

더보기

root@R6# show | display set
set version 20190319.203446_builder.r1013243
set system root-authentication encrypted-password
set system host-name R6
set system syslog file messages any notice
set system syslog file messages authorization info
set system syslog file interactive-commands interactive-commands any
set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 172.16.1.11/31
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 172.16.1.15/31
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces ge-0/0/2 unit 0 family inet address 172.16.1.18/31
set interfaces ge-0/0/2 unit 0 family mpls
set interfaces fxp0 unit 0 family inet dhcp vendor-id Juniper-vmx-VM60596CBDDF
set interfaces lo0 unit 0 family inet address 192.168.100.6/32
set routing-options router-id 192.168.100.6
set protocols ospf source-packet-routing node-segment ipv4-index 1006
set protocols ospf source-packet-routing srgb start-label 800000
set protocols ospf source-packet-routing srgb index-range 4000
set protocols ospf area 0.0.0.0 interface fxp0.0 disable
set protocols ospf area 0.0.0.0 interface ge-0/0/0.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface ge-0/0/1.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface ge-0/0/2.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface ge-0/0/3.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface lo0.0 passive
set protocols mpls interface fxp0.0 disable
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface ge-0/0/2.0

R7 config

더보기

root@R7# show | display set
set version 20190319.203446_builder.r1013243
set system root-authentication encrypted-password
set system host-name R7
set system syslog file messages any notice
set system syslog file messages authorization info
set system syslog file interactive-commands interactive-commands any
set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 172.16.1.19/31
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 172.16.1.17/31
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces ge-0/0/5 unit 0 family inet address 10.0.2.1/24
set interfaces ge-0/0/6 unit 0 family inet address 10.0.1.1/24
set interfaces fxp0 unit 0 family inet dhcp vendor-id Juniper-vmx-VM60596CB7F8
set interfaces lo0 unit 0 family inet address 192.168.100.7/32
set policy-options policy-statement BGP-direct term 10 from protocol direct
set policy-options policy-statement BGP-direct term 10 from route-filter 10.0.0.0/8 orlonger
set policy-options policy-statement BGP-direct term 10 then next-hop self
set policy-options policy-statement BGP-direct term 10 then accept
set policy-options policy-statement BGP-direct term 20 then reject
set routing-options router-id 192.168.100.7
set protocols bgp group R1-R7 type internal
set protocols bgp group R1-R7 local-address 192.168.100.7
set protocols bgp group R1-R7 export BGP-direct
set protocols bgp group R1-R7 local-as 65001
set protocols bgp group R1-R7 neighbor 192.168.100.1
set protocols ospf source-packet-routing node-segment ipv4-index 1007
set protocols ospf source-packet-routing srgb start-label 800000
set protocols ospf source-packet-routing srgb index-range 4000
set protocols ospf area 0.0.0.0 interface fxp0.0 disable
set protocols ospf area 0.0.0.0 interface ge-0/0/0.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface ge-0/0/1.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface lo0.0 passive
set protocols mpls interface fxp0.0 disable
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0

 -R7 로컬 광고를 위한 policy 적용.



set chassis network-services enhanced-ip 설정하고 리부팅 필요.  설정 안하면  commit error 발생.

Segment Routing config

set protocols ospf source-packet-routing node-segment ipv4-index 100x  ------ node segment 레이블 설정
set protocols ospf source-packet-routing srgb start-label 800000  -------------------------- 시작 레이블 설정
set protocols ospf source-packet-routing srgb index-range 4000  --------------------------- 인덱스 범위 설정



show ospf neighbor 및 show route summary 명령을 사용하여 OSPF가 제대로 작동하고, 레이블이 있는 OSPF (L-OSPF) 경로가 광고되는지 확인.

inet.3 에  L-OSPF 경로 확인.

inet.3 테이블에 다른 Router loopback 주소가 있으므로 BGP next hop recursive route lookup에  사용가능.

동일한 label 로 swap함. 경로에 있는 모든 라우터가 동일 레이블로 swap한다.

R7 에서 광고받은 경로(10.0.1.0/24)의 protocol next hop 이 192.168.100.7이고 inet.3 테이블 확인.

경로확인 R1 - R2 - R5 - R7



R1에서 TE 설정 ( 경로 R1 - R3 - R4 - R5 -R7 )

root@R1# show protocols source-packet-routing | display set
set protocols source-packet-routing segment-list R7-Primary hop1 ip-address 172.16.1.3
set protocols source-packet-routing segment-list R7-Primary hop2 label 801004
set protocols source-packet-routing segment-list R7-Primary hop3 label 801005
set protocols source-packet-routing segment-list R7-Primary hop4 label 801007

set protocols source-packet-routing source-routing-path Path-to-R7 to 192.168.100.7
set protocols source-packet-routing source-routing-path Path-to-R7 primary R7-Primary

 - 172.16.1.3 은 direct connected neighbor IP

inet.3 에서  label stack 확인가능.

경로확인 R1 - R3 - R4 - R5 - R7

728x90

위와 같은 웹로그인 화면에서 아무리 로그인 시도를 해도 반응이 없을때

아래 3가지 방법을 시도해보세요

  1. eve-ng 콘솔 또는 ssh 접속후 아래 명령어 입력하여 권한수정

    root@eve-ng:~# /opt/unetlab/wrappers/unl_wrapper -a fixpermissions

  2. "df -h"를 사용하여 기존 HDD 용량을 확인하고. 가득 차면 VM Ware에서 새 SCSI 카드 드라이브를 만들어 HDD를 추가

  3. eve-ng 콘솔 또는 ssh 접속후 아래 명령어 입력하여 SQL 데이터페이스를 수정

    root@eve-ng:~# /opt/unetlab/wrappers/unl_wrapper -a restoredb

728x90
OSPF, RIP 디폴드 정책




R1

interfaces {
    em0 {
        unit 0 {
            family inet;
        }
    }
    em1 {
        unit 0 {
            family inet {
                address 192.168.12.2/24;
            }
        }
    }
    lo0 {
        unit 0 {
            family inet {
                address 1.1.1.1/32;
            }
        }
    }
}
protocols {
    ospf {
        area 0.0.0.10 {
            interface em1.0;
            interface lo0.0;
        }
    }
}


    OSPF database, Area 0.0.0.10
 Type       ID               Adv Rtr           Seq      Age  Opt  Cksum  Len
Router  *1.1.1.1          1.1.1.1          0x8000000b  2118  0x22 0x44d8  48
Router   1.1.1.2          1.1.1.2          0x8000000b  2449  0x22 0x64cb  36
Network *192.168.12.2     1.1.1.1          0x8000000a  1618  0x22 0x8725  32
Summary  1.1.1.2          1.1.1.2          0x8000000a  1950  0x22 0x1b0f  28
Summary  1.1.1.3          1.1.1.2          0x80000009   203  0x22 0x1d0c  28
Summary  1.1.1.4          1.1.1.2          0x80000004  1202  0x22 0x2705  28
Summary  192.168.13.0     1.1.1.2          0x8000000a   952  0x22 0x1c9b  28
Summary  192.168.14.0     1.1.1.2          0x80000008  2700  0x22 0x1f98  28
ASBRSum  1.1.1.3          1.1.1.2          0x80000002  1451  0x22 0x1d12  28
 // Type4  ASBR summary 정보 ( ASBR address 포함 )
    OSPF AS SCOPE link state database
 Type       ID               Adv Rtr           Seq      Age  Opt  Cksum  Len
Extern   1.1.1.6          1.1.1.3          0x80000001  2187  0x22 0x8a17  36   // RIP 재분배로 받아온 경로

R2

interfaces {
    em1 {
        unit 0 {
            family inet {
                address 192.168.13.1/24;
            }
        }
    }
    em3 {
        unit 0 {
            family inet {
                address 192.168.12.1/24;
            }
        }
    }
    lo0 {
        unit 0 {
            family inet {
                address 1.1.1.2/32;
            }
        }
    }
}
protocols {
    ospf {
        area 0.0.0.10 {
            interface em3.0;
        }
        area 0.0.0.0 {
            interface lo0.0;
            interface em1.0;
        }
    }
}


R3

interfaces {
    em1 {
        unit 0 {
            family inet {
                address 192.168.13.2/24;
            }
        }
    }
    em2 {
        unit 0 {
            family inet {
                address 192.168.15.2/24;
            }
        }
    }
    em3 {
        unit 0 {
            family inet {
                address 192.168.14.2/24;
            }
        }
    }
    lo0 {
        unit 0 {
            family inet {
                address 1.1.1.3/32;
            }
        }
    }
}
protocols {
    ospf {
        export rip-ospf;
        area 0.0.0.0 {
            interface em1.0;
            interface lo0.0;
        }
        area 0.0.0.20 {
            interface em3.0;
        }
    }
    rip {
        group riprouter {
            export ospf-rip;
            neighbor em2.0;
        }
    }
}
policy-options {
    policy-statement ospf-rip {     // ospf - > rip  재분배   ( 상단 표를 보면 디폴트가  reject 이다)
        from protocol ospf;
        then accept;
    }
    policy-statement rip-ospf {   // rip - > ospf 재분배     ( 상단 표를 보면 디폴트가  reject 이다)
        from protocol rip;
        then accept;
    }
}


R4

interfaces {
    em2 {
        unit 0 {
            family inet {
                address 192.168.14.1/24;
            }
        }
    }
    lo0 {
        unit 0 {
            family inet {
                address 1.1.1.4/32;
            }
        }
    }
}
protocols {
    ospf {
        area 0.0.0.20 {
            interface em2.0;
            interface lo0.0;
        }
    }
}


    OSPF database, Area 0.0.0.20
 Type       ID               Adv Rtr           Seq      Age  Opt  Cksum  Len
Router   1.1.1.3          1.1.1.3          0x8000002c   648  0x22 0x48be  36
Router  *1.1.1.4          1.1.1.4          0x80000008   687  0x22 0x6da8  48
Router  *192.168.14.1     192.168.14.1     0x8000000a  2213  0x22 0x1b16  48
Network *192.168.14.1     1.1.1.4          0x80000006  1437  0x22 0x9d0b  32
Summary  1.1.1.1          1.1.1.3          0x8000000a  1522  0x22 0x33f4  28
Summary  1.1.1.2          1.1.1.3          0x8000000a  1254  0x22 0x1f09  28
Summary  1.1.1.3          1.1.1.3          0x8000000c   719  0x22 0x71f   28
Summary  192.168.12.0     1.1.1.3          0x8000000a   987  0x22 0x2b8b  28
Summary  192.168.13.0     1.1.1.3          0x8000000d    20  0x22 0x10a3  28

    OSPF AS SCOPE link state database
 Type       ID               Adv Rtr           Seq      Age  Opt  Cksum  Len
Extern   1.1.1.6          1.1.1.3          0x80000002   317  0x22 0x8818  36  // RIP 재분배로 받아온 경로

R6

interfaces {
    em1 {
        unit 0 {
            family inet {
                address 192.168.15.1/24;
            }
        }
    }
    lo0 {
        unit 0 {
            family inet {
                address 1.1.1.6/32;
            }
        }
    }
}
protocols {
    rip {
        group riprouter {
            export rip_export;
            neighbor em1.0;
            neighbor lo0.0;
        }
    }
}
policy-options {
    policy-statement rip_export {       // RIP 라우터끼리는 default 로 라우팅 정보를 export 하지 않아서
        then accept;                             설정함.
    }
}

+ Recent posts

티스토리툴바
